50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

Henan Strongwin Machinery Equipment Co., Ltd.

50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

Brand Name : Strongwin

Model Number : 50t/h

Certification : CE,ISO

Place of Origin : Henan,China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets/month

Delivery Time : 30 work days

Packaging Details : container

Yield : 50t/h

Product name : 50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

Main equipments : crusher,mixer, pellet machine,pellet cooler,sieve

Auxiliary equipment : Steel structure, silos

Pellets Diameter : 2-10mm

Bearing : SKF

Motor : Siemens

Contact Now

China 50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

Feed Pellet Equipment Main Machine display


1. Grinding
Grinding is a process of bracking solid ingredients to a required size. Finer the material higher will be the surface area exposure to heat and moisture to accomplish the gelatinization in conditioning. A fine granding material can transfer his maximum energy to the animal as compare to a course grinded material. It is a very energy consuming process.

2. Mixing
As the name implies "Mixing" is a process of combining blending of micro ingredients. A proper mixing can be defined with a unit called co-efficient of variation. Smaller the co-efficient of variation higher will be the quality of mixing. Our well designed mixer machine has such a great quality. Beyond this is a mixer machine should have a provision to mix liquid to it as we need oil or molasses addition to the feed.

3. Pelleting
Pelleting is a main step of any pelleting plant. It is a process of converting any powder to solid shape called pallet. In this process the powder material is extruded through a well designed die with the help of rollers to convert it in to pallets. The quality & production of pallet mill depends on so many parameters.
1.Feed formula 2. Die configuration 3. Quality of Granding 4. Quality of conditioning. No doubt every material can be converted into pellets.

4. cooling
Cooling is a process of removing heat. As we know during conditioning we add heat and moisture and also through palleting process heat generates by extrusion process. But the pallet should have a standard moisture and heat to attain its life of storage and make it safe from fungus. So we have to remove extra heat and moisture from the pallet. All this is done with the help of a well designed counter flow cooler.

5.Crumbling
Crumbling is a process in which pallets after cooling is broken in to small pieces to make it suitable for small chicks or hens. When there is no need of crumbling, we by-pass the feed directly to the screen with the help of By-pass Mechanism. A well designed crumbier should have capability to break the pellets without making much finer.

9. screening
Product coming out of crumbier is or their in pallets form (if we use by-pass) or in crumbs form. There are required to screen to remove fines and oversize particle. A double deck screeners are used to remove both fine and oversize particles. Fine and directed to pallet mill for repalleting while oversize particles are directed to crumbier for reprocessing. A well desired screener should have capability to remove fine and oversize to a desired percentages, And it should not be clog frequently.

6. packing
The end of process in every plant is bagging also called packing. After screening the finished products are filled in to bags. In small and medium plants, bagging can be carried out manually but for higher production it is batter to go for electronic bagging machine.

Main Machine of Animal Feed Pellet Manufacturing Equipment

Feed Crusher →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Screener → Automatic Weighing and Packing Machine


50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment


50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

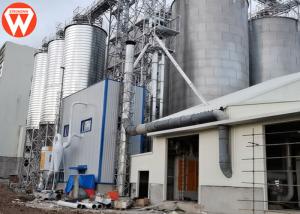

Silos display

50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment

50T/H Pig Farm Animal Feed Pellet Manufacturing Equipment
